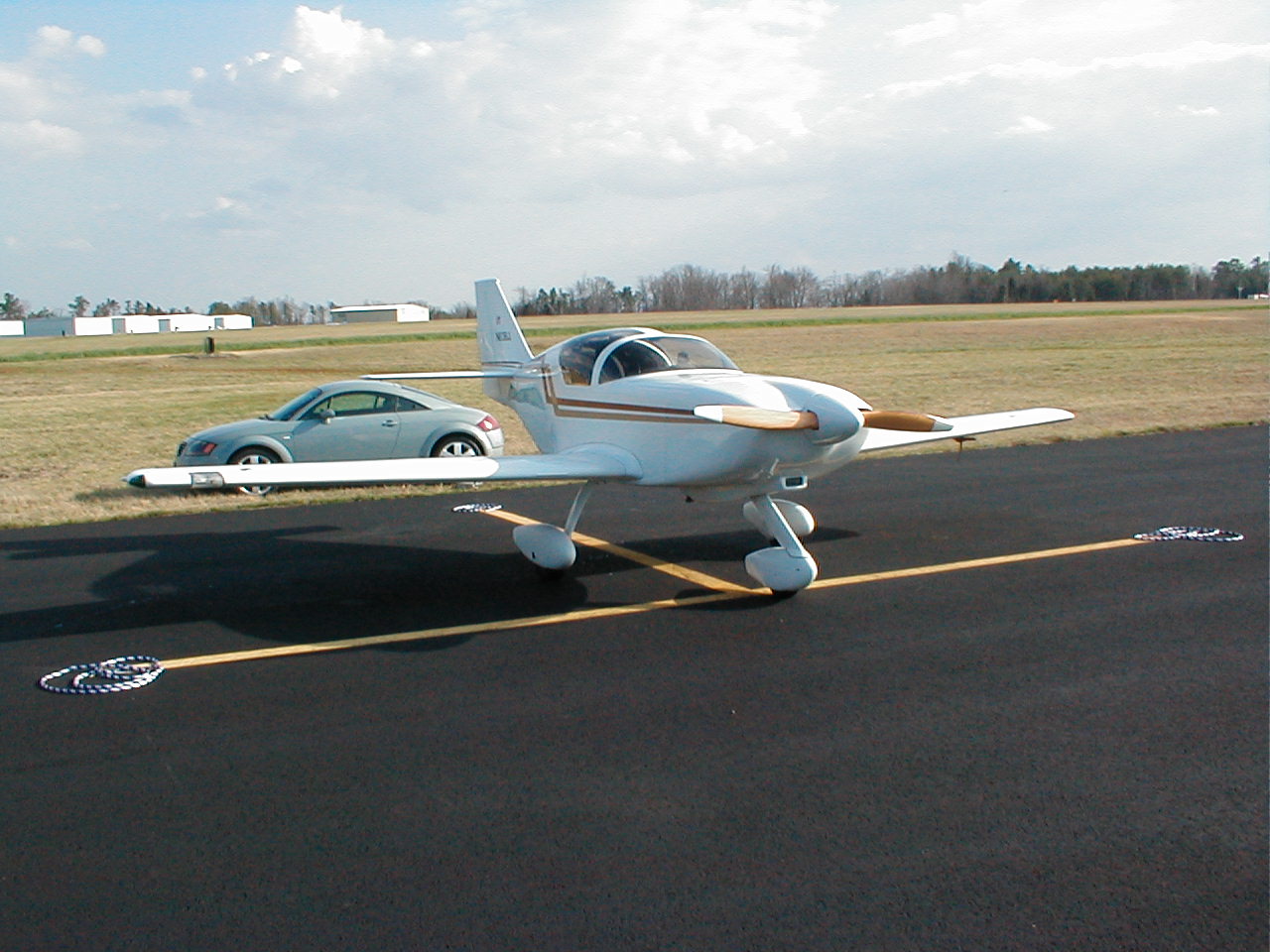

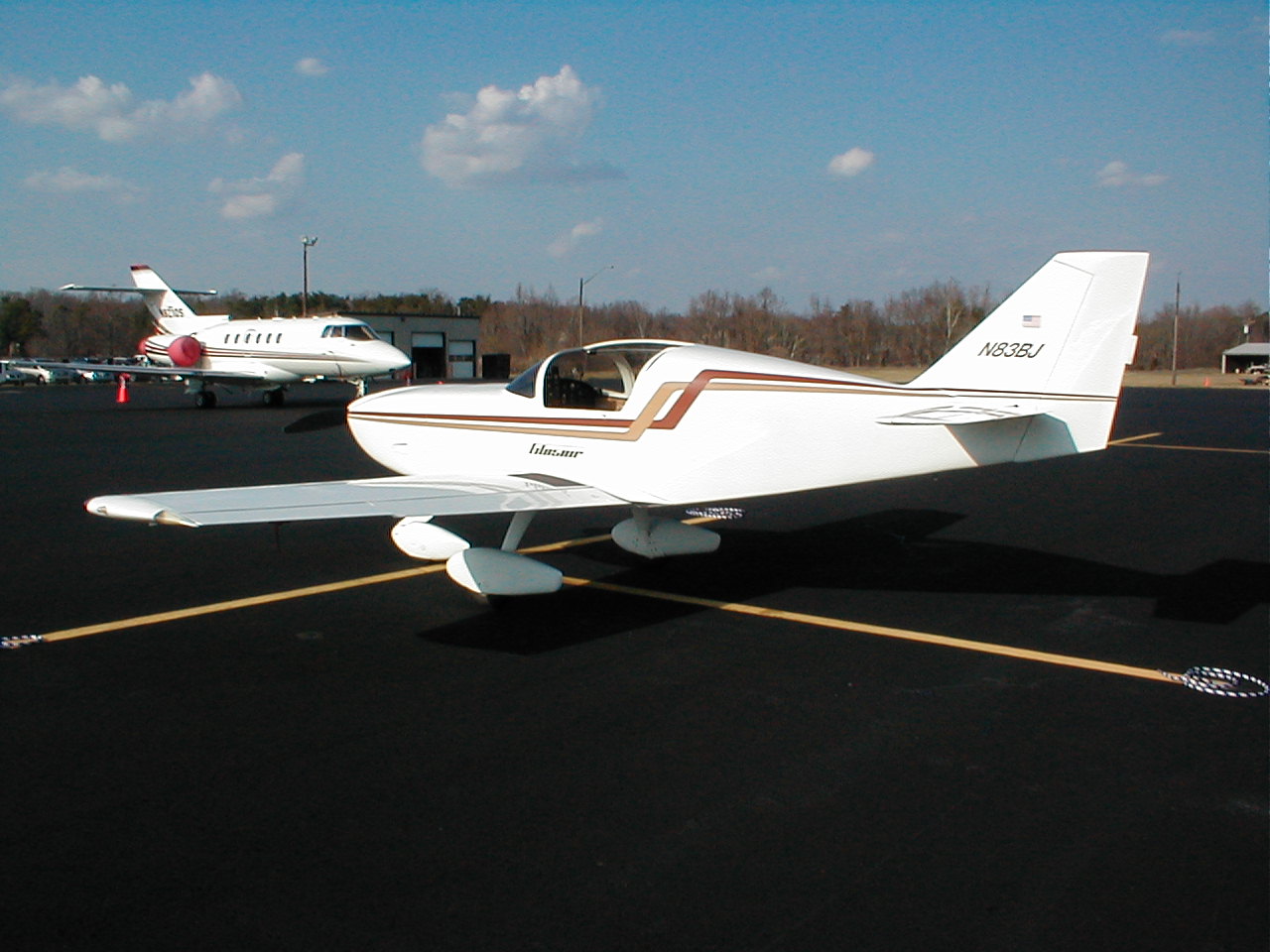

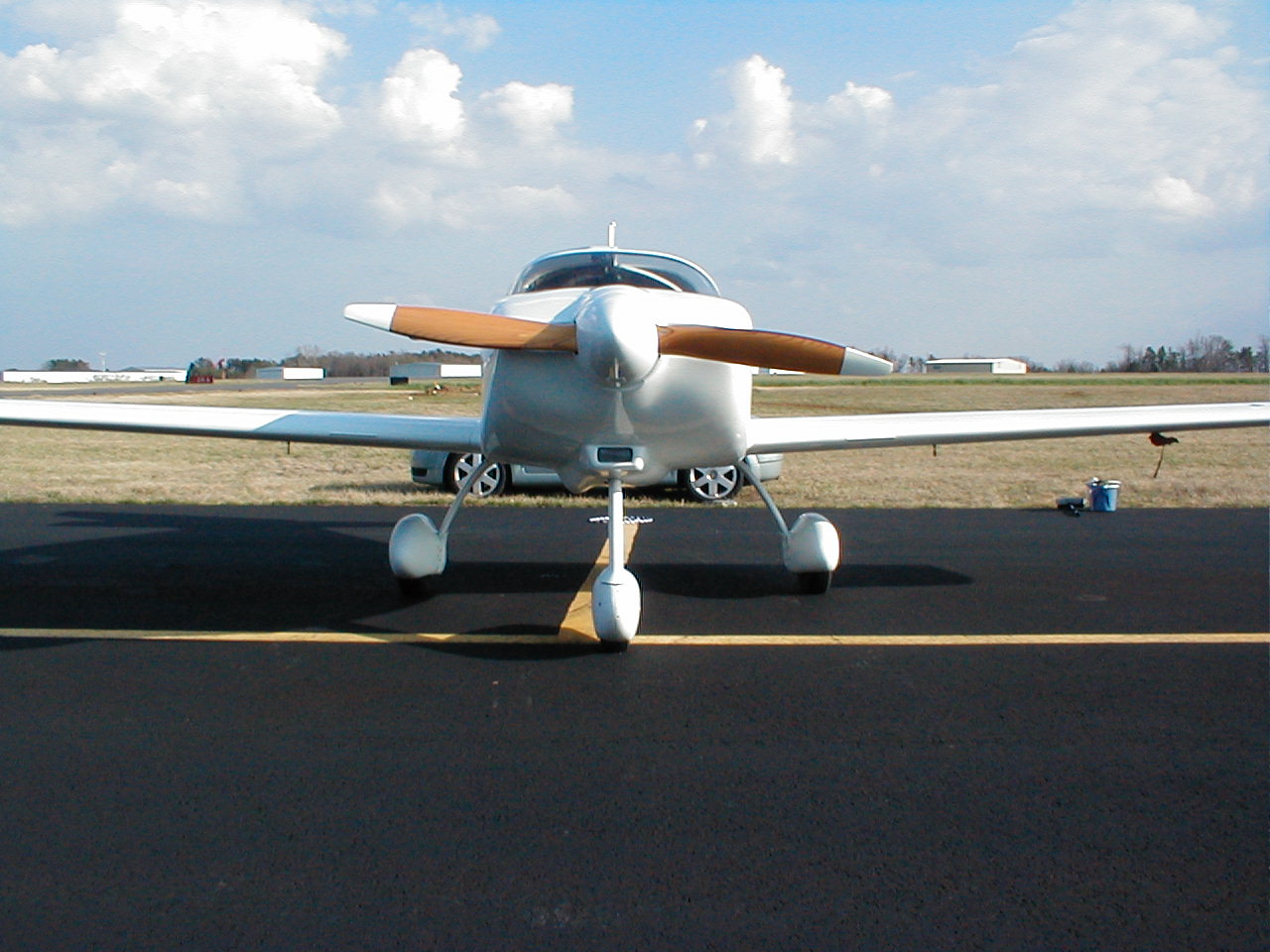

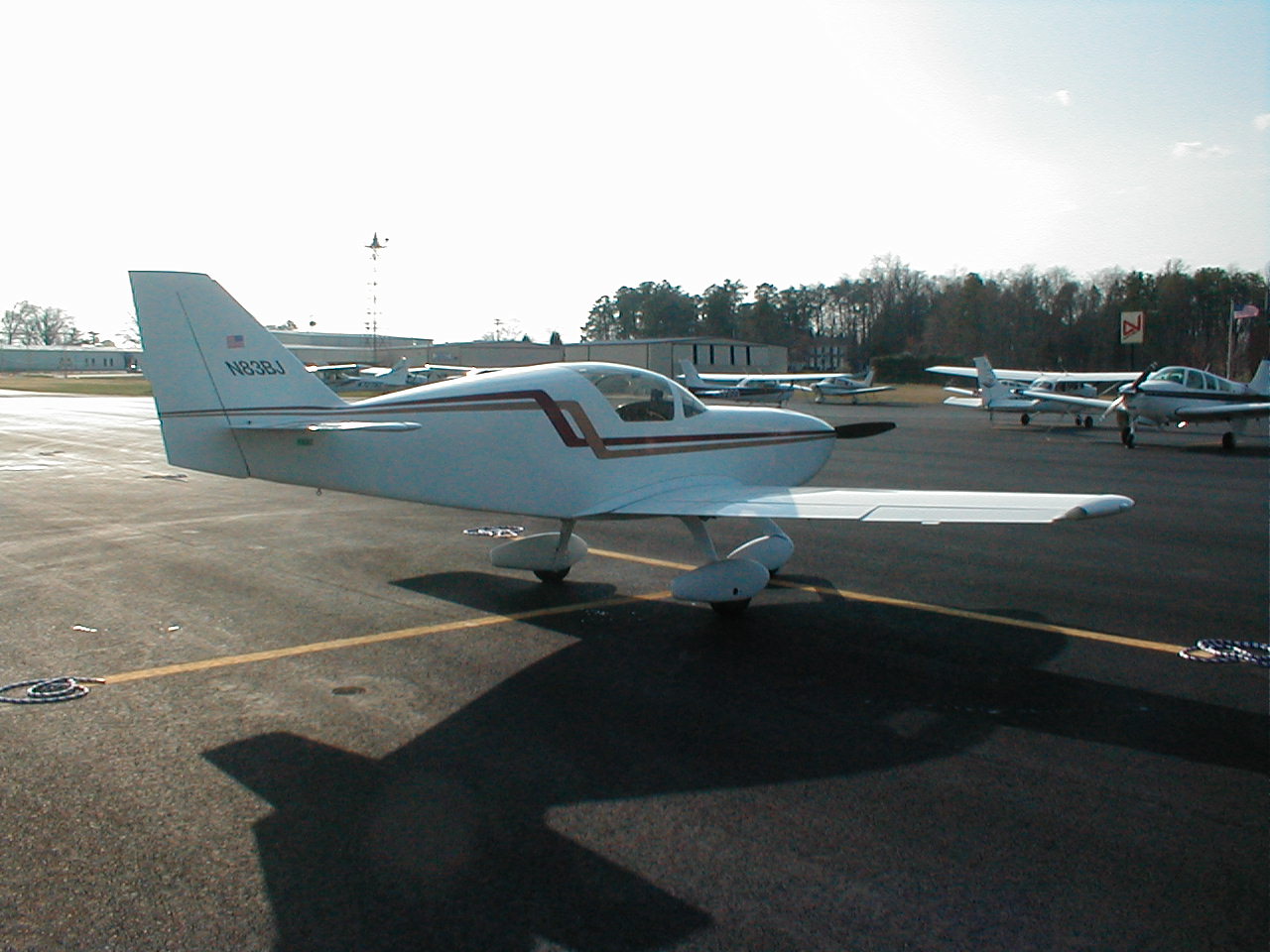

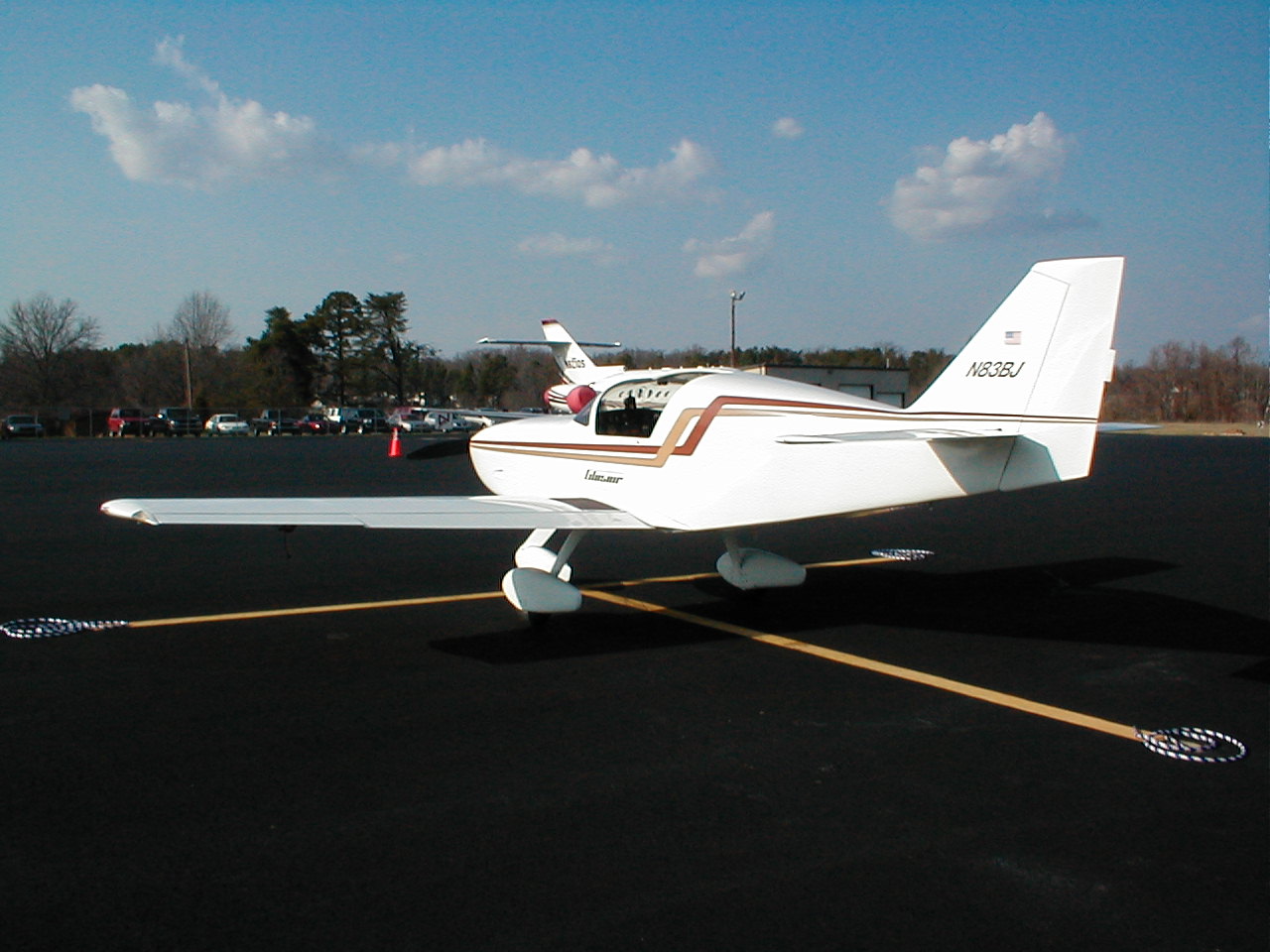

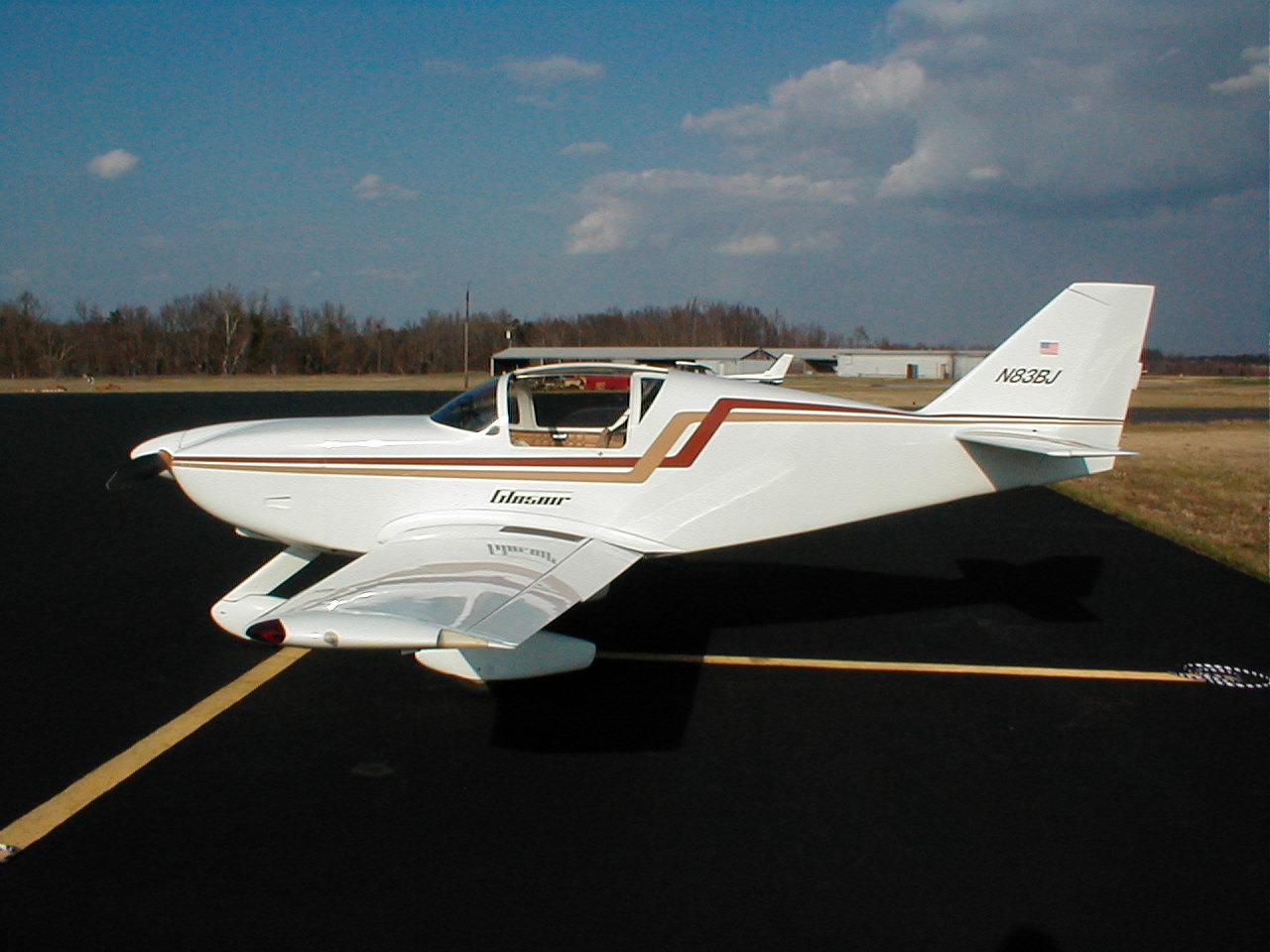

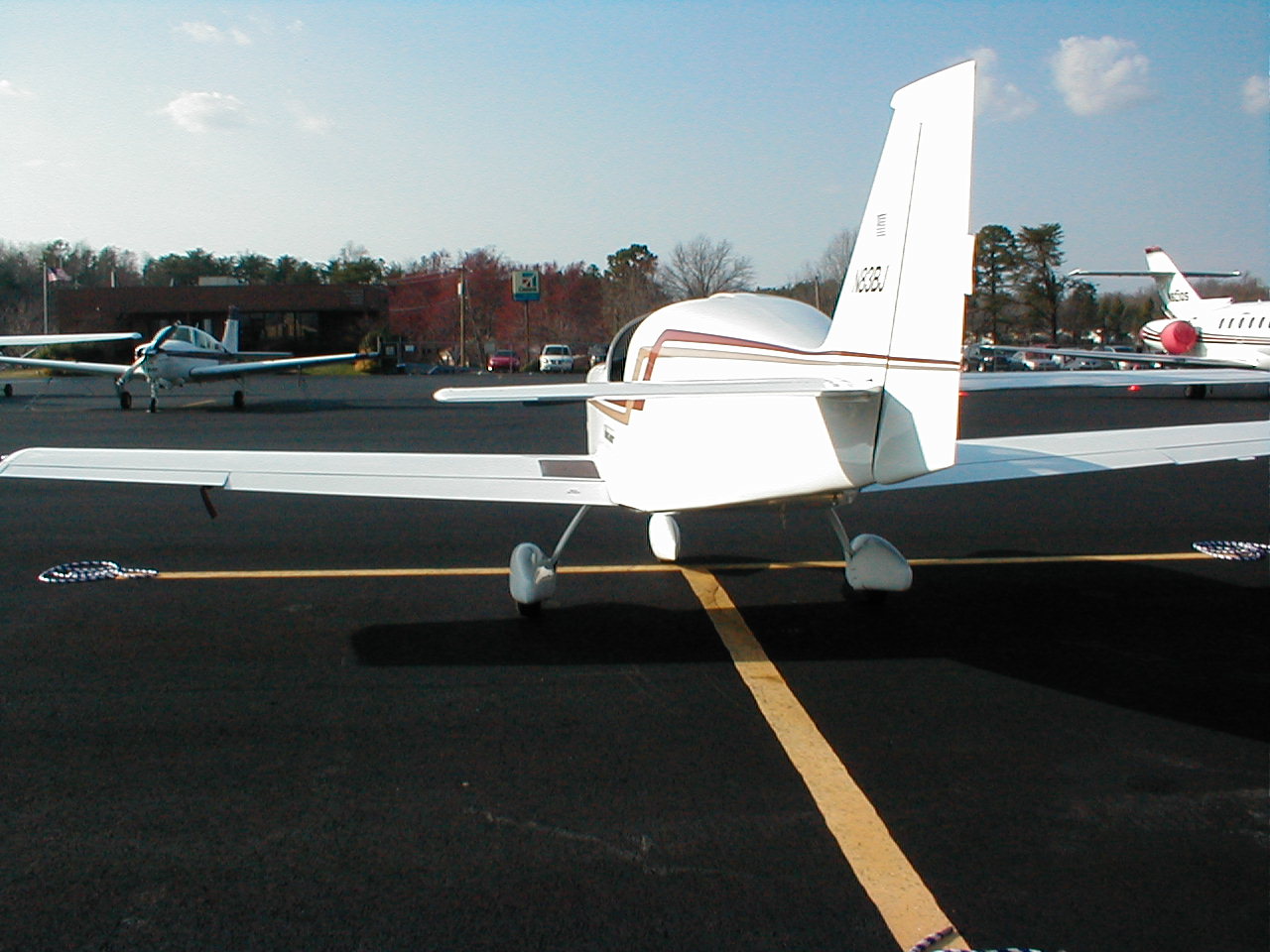

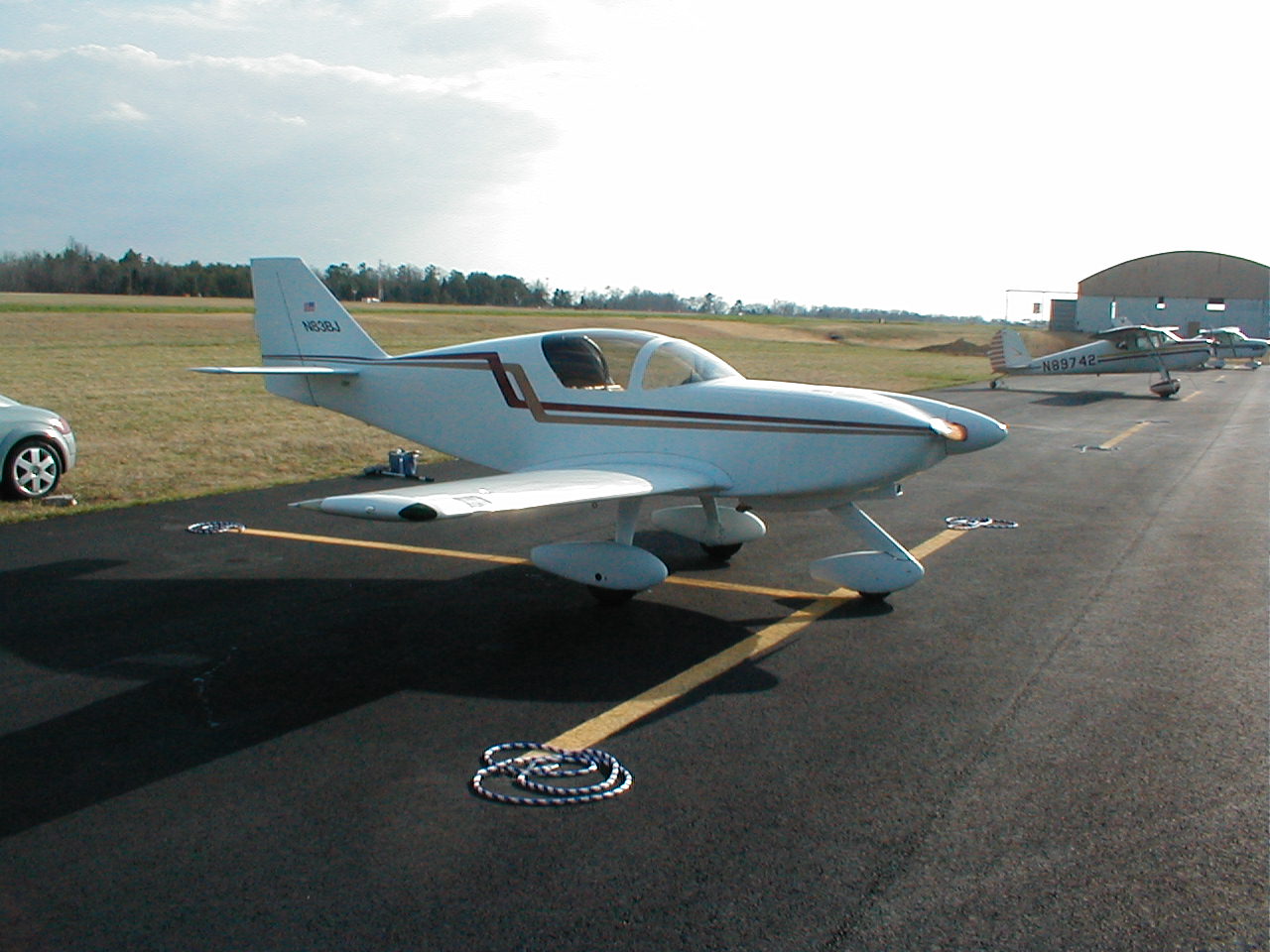

Glasair 1 FT

---

Dj Merrill
E-mail: "glasair -at- deej.net"
http://deej.net/glasair/

First flight in March 1984
Award winning airplane - Won 1987 Sun-N-Fun Reserve Grand Champion (Joe Wells)

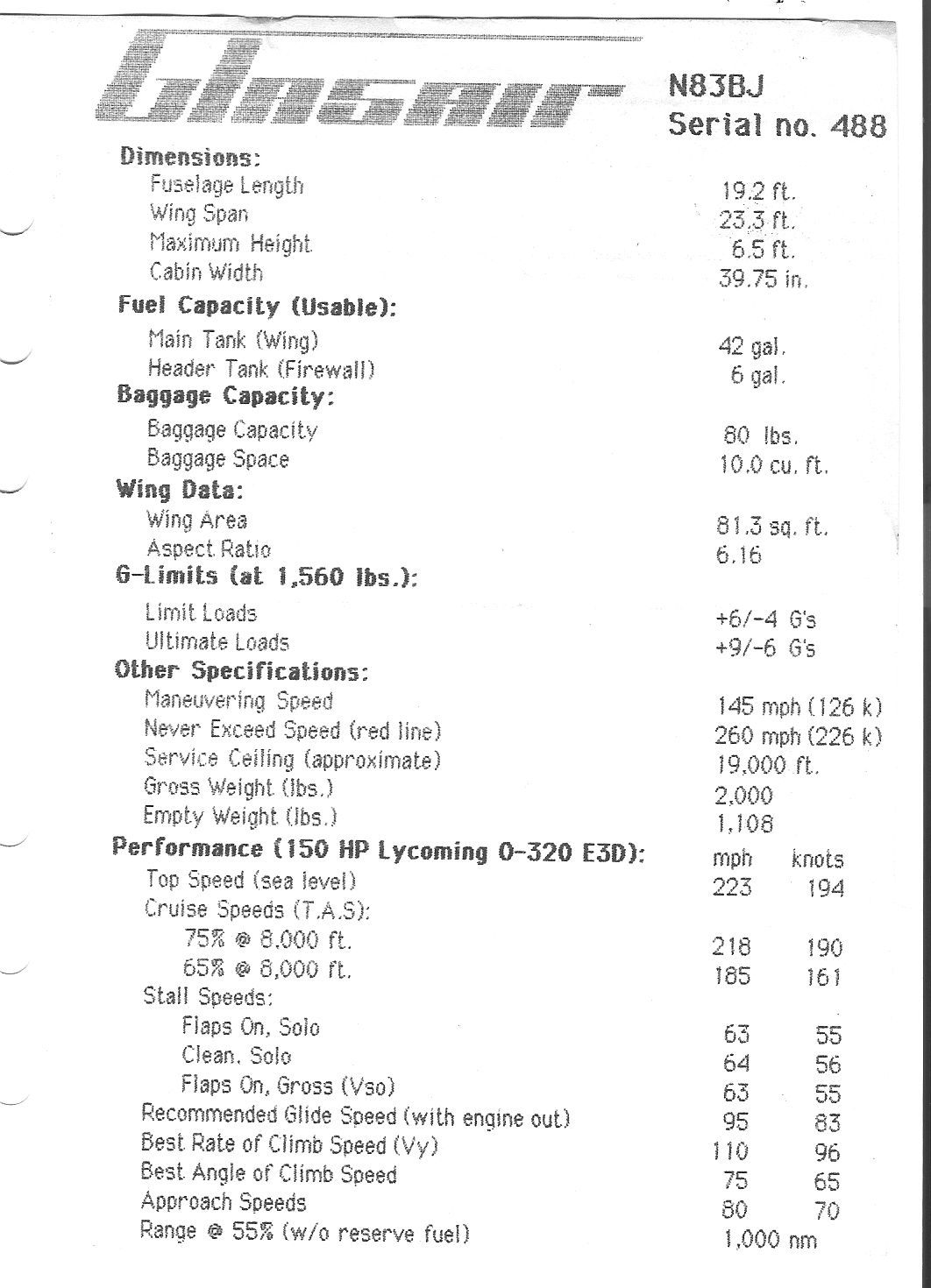

Features:

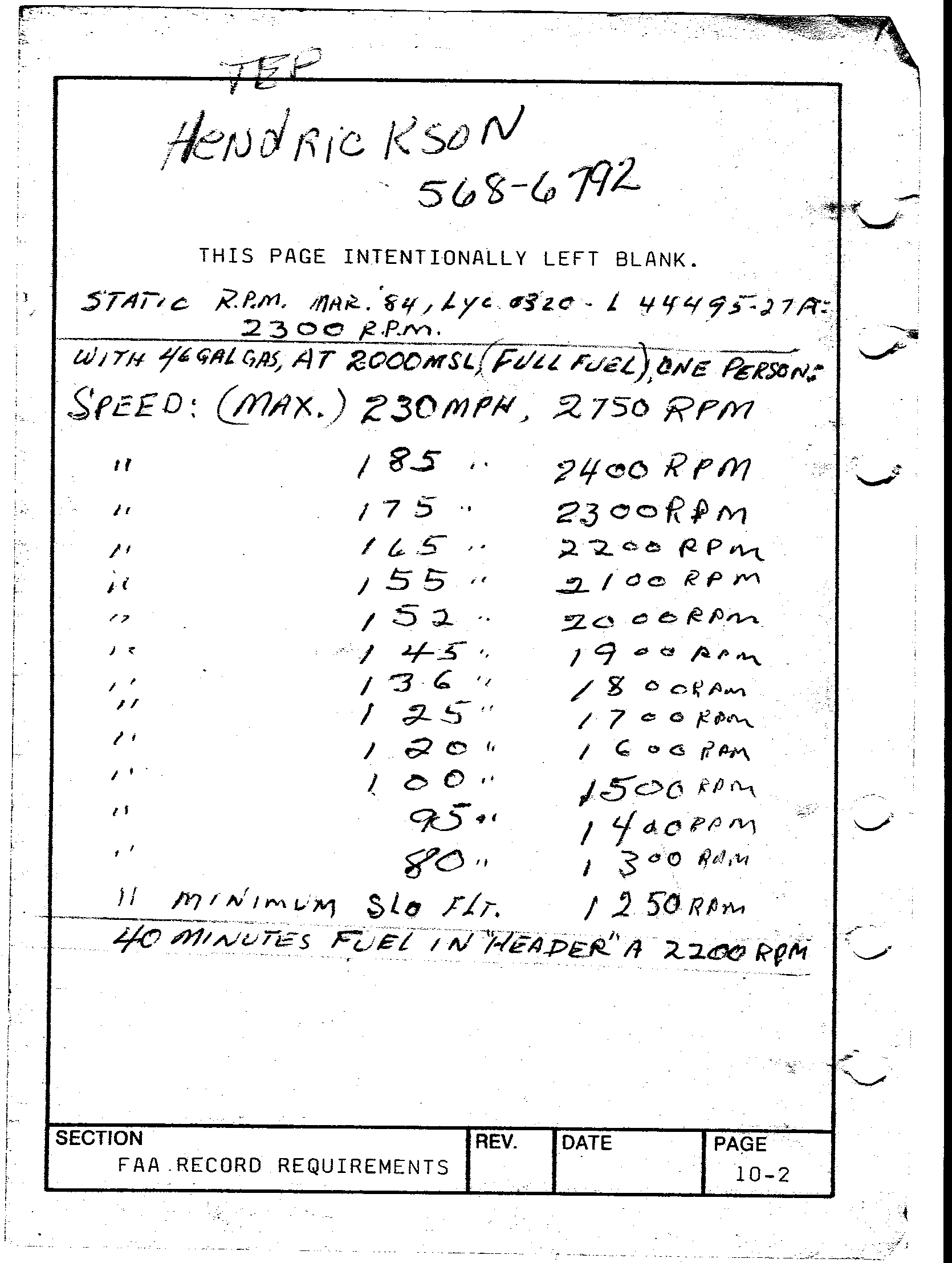

Top speed 223 mph (194 kts)
Typical cruise speed 185 mph (160 kts) at 2400 RPM, ~8gph

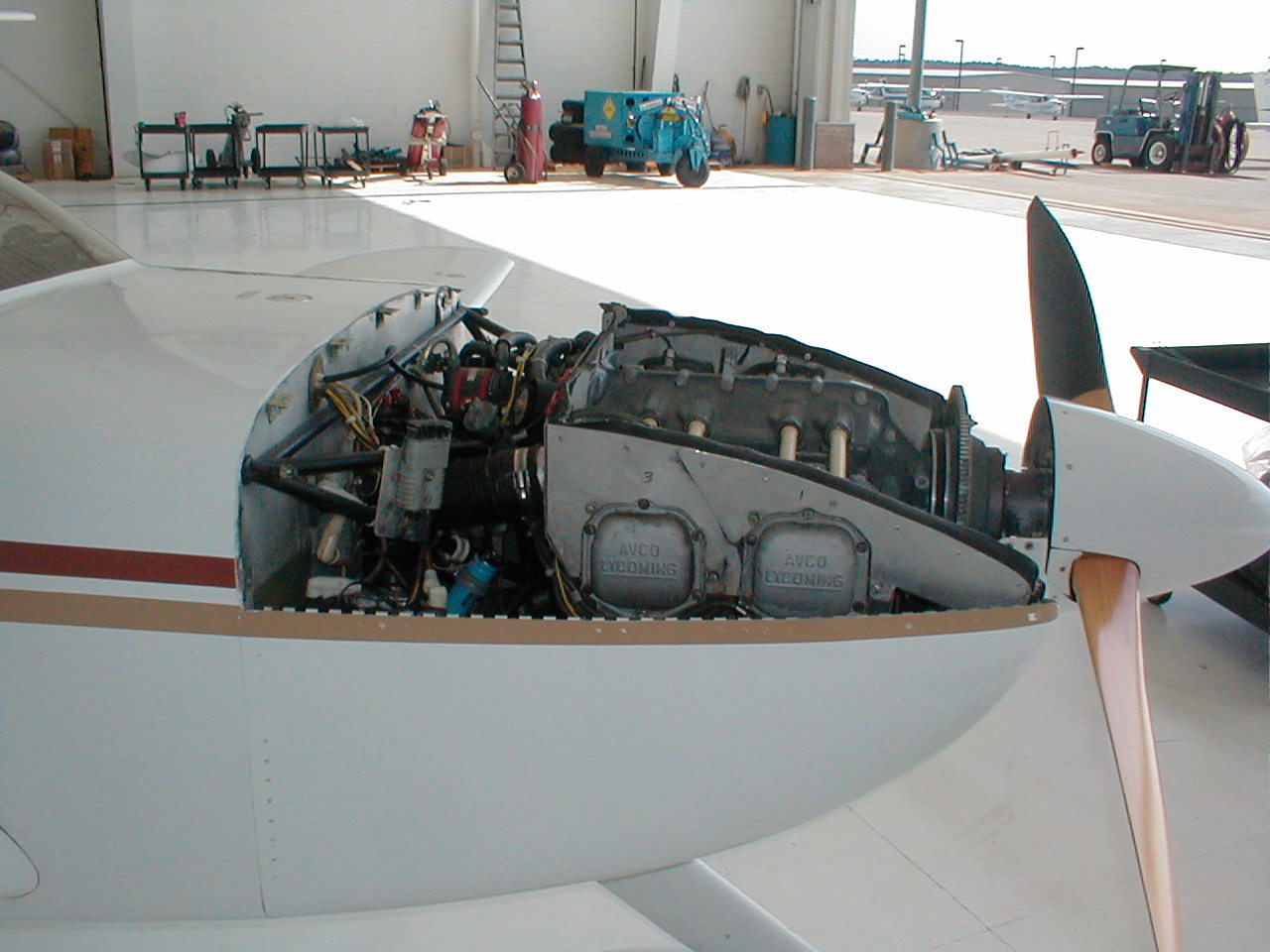

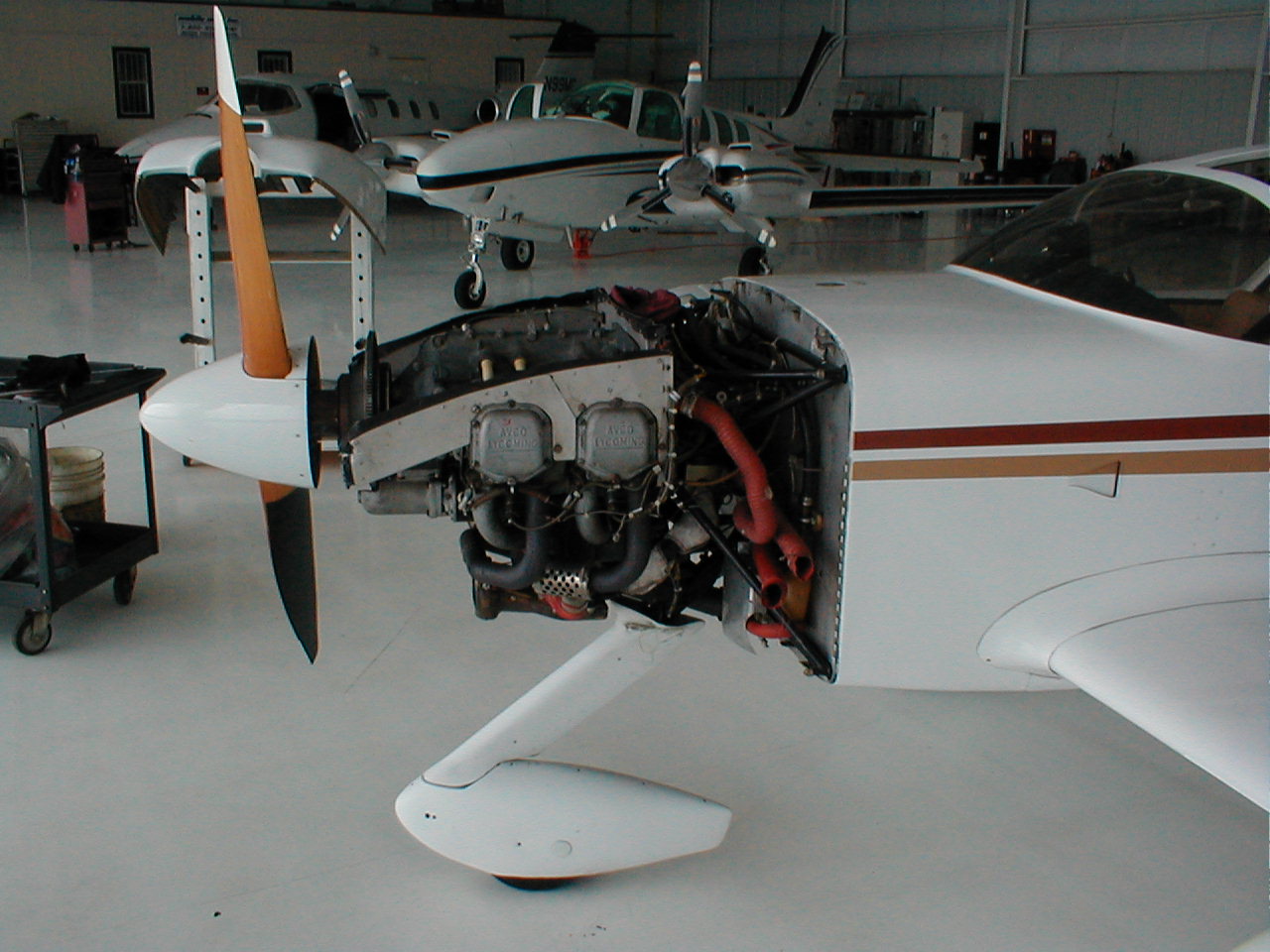

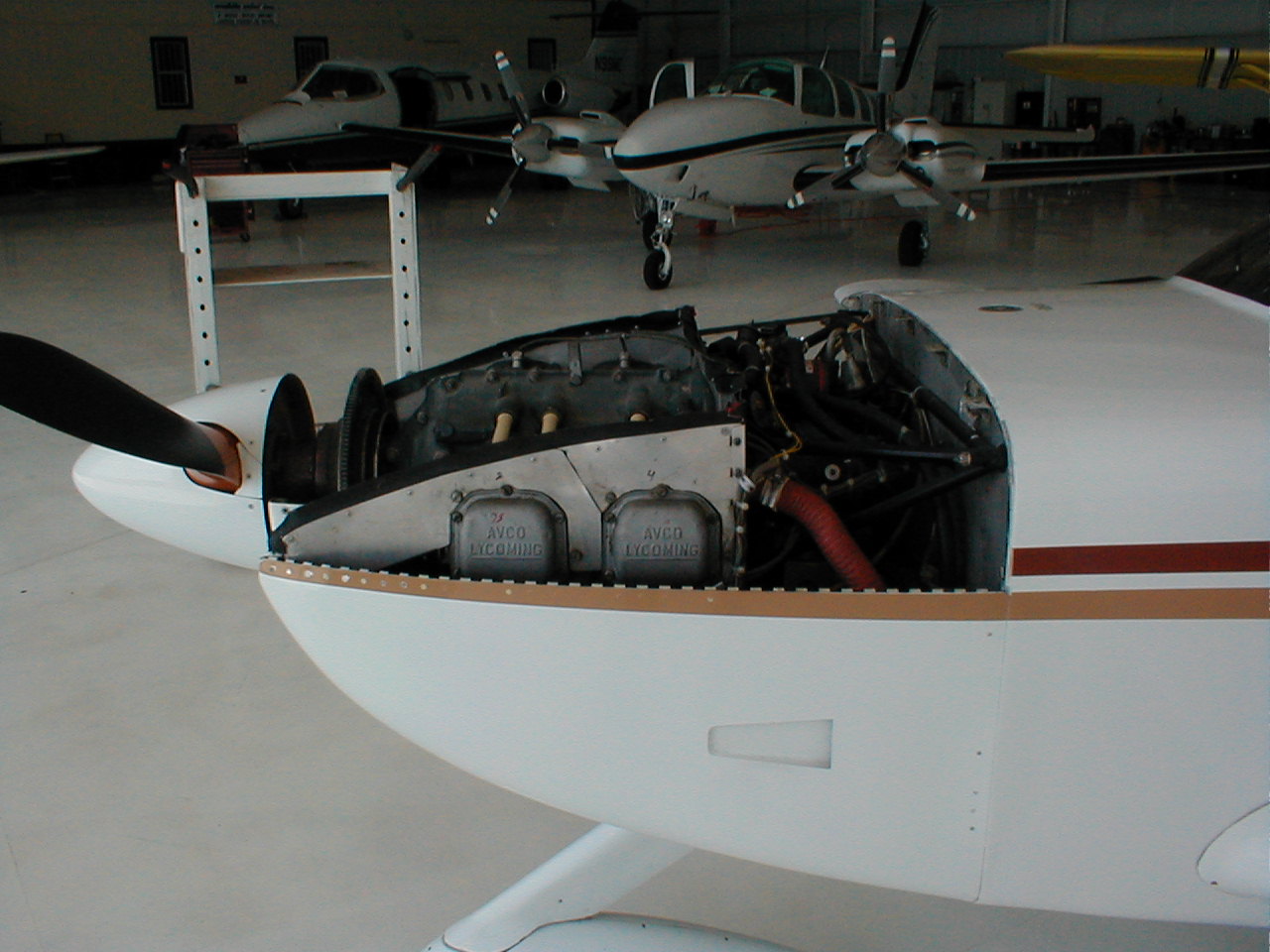

Lycoming O320-E3D 150hp Engine
1121 Hours on Airframe and Engine
48 Gals Fuel (42 Main, 6 Header)

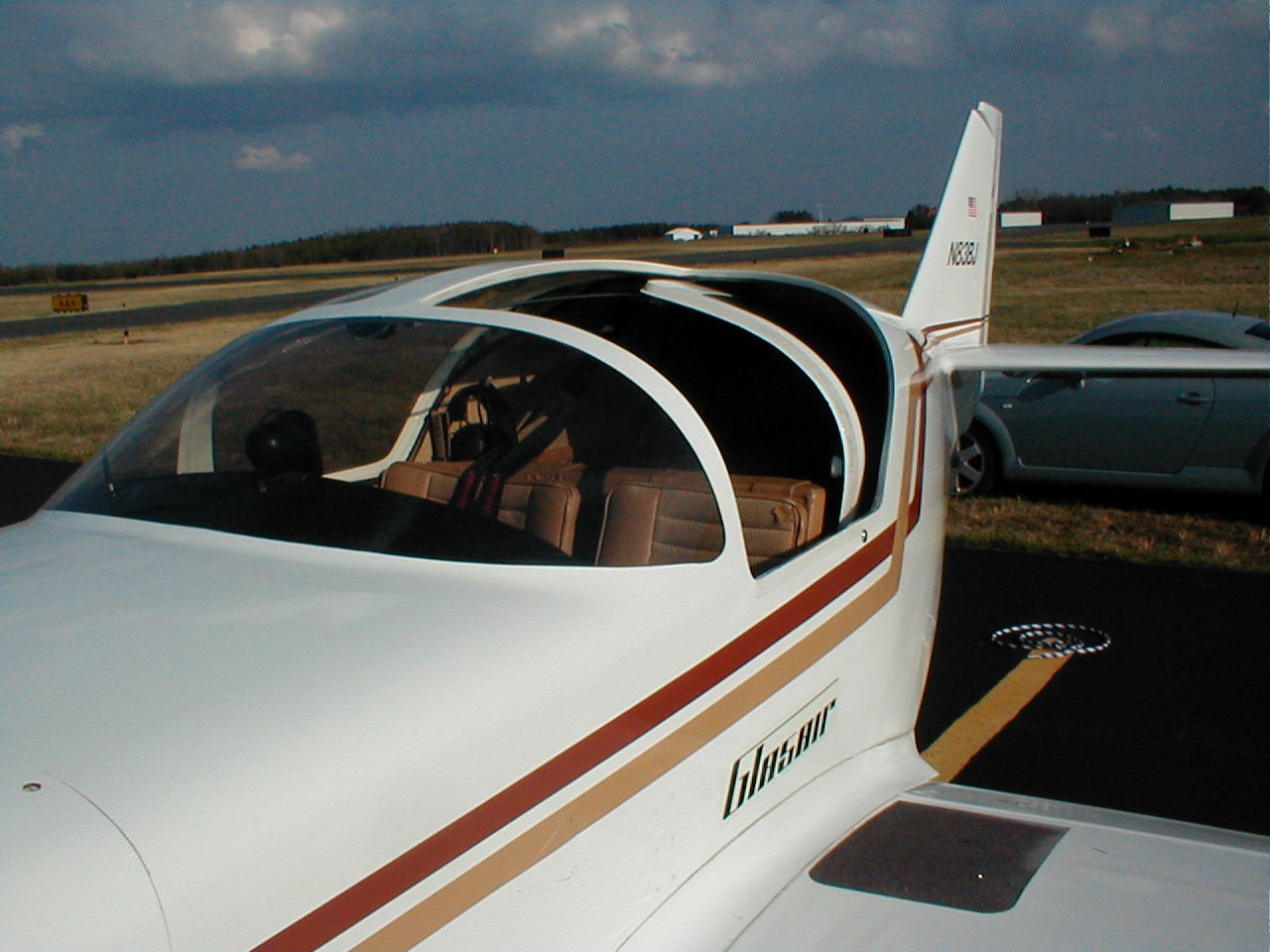

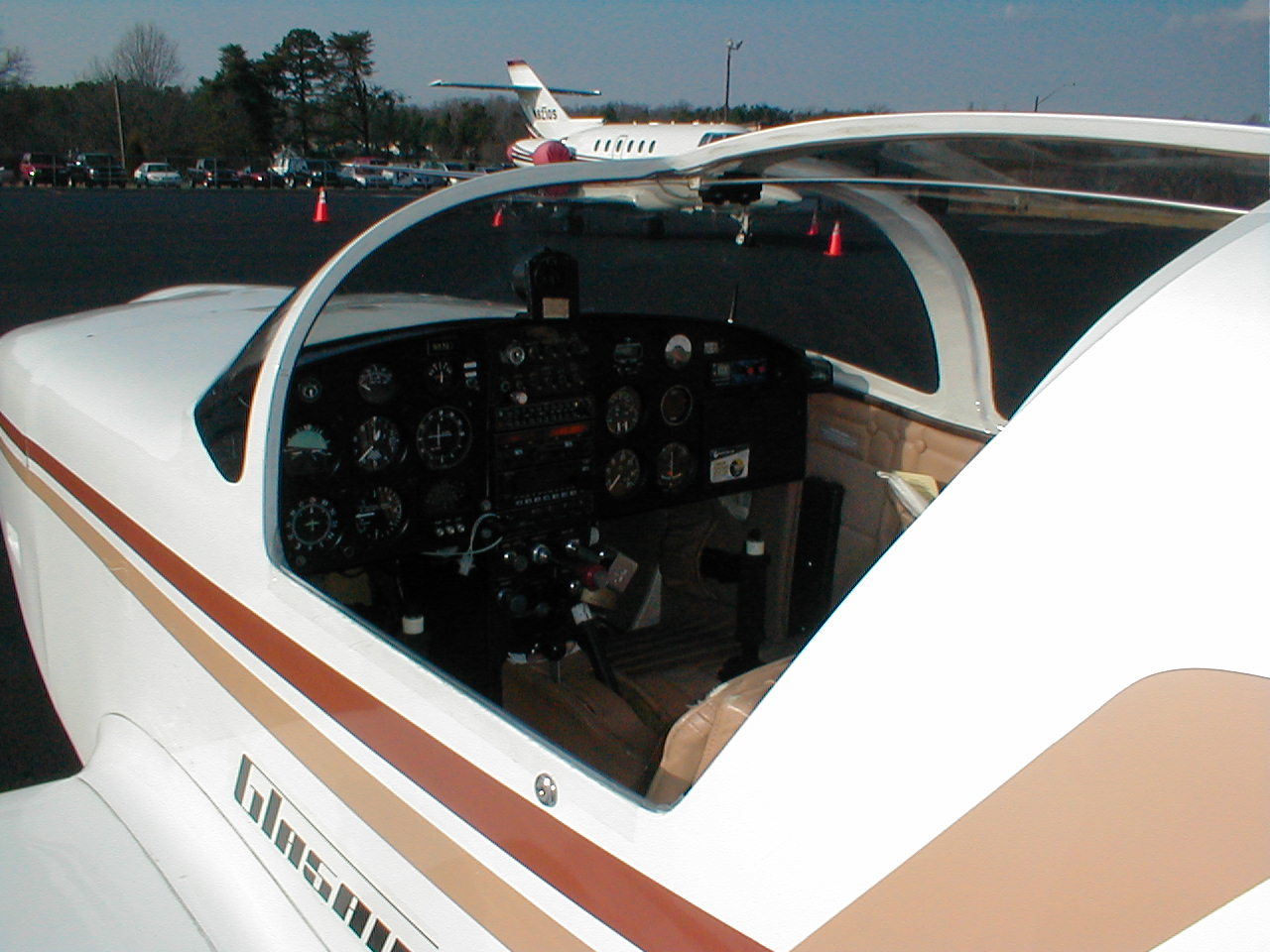

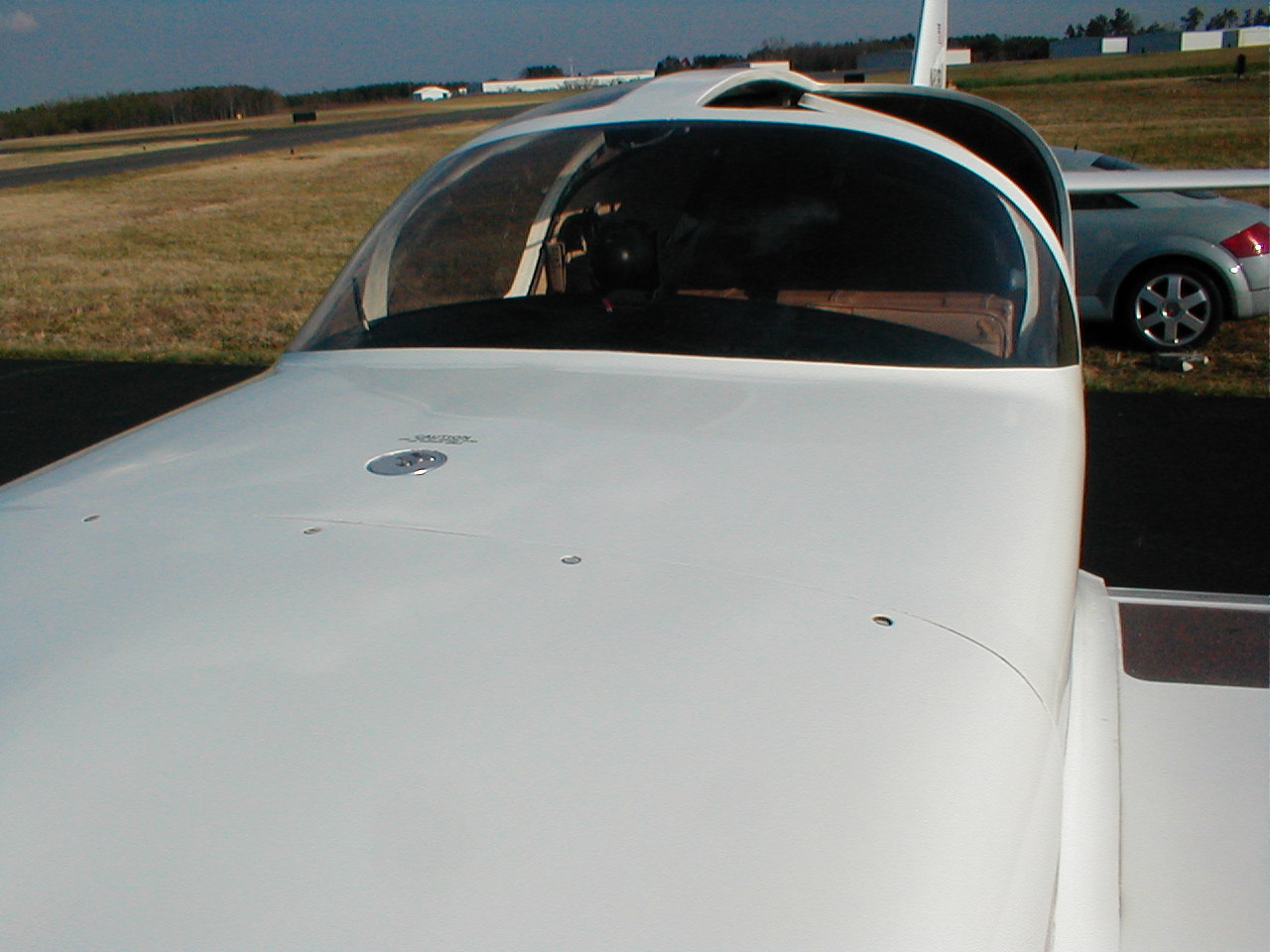

Internal Sliding/Locking Canopy

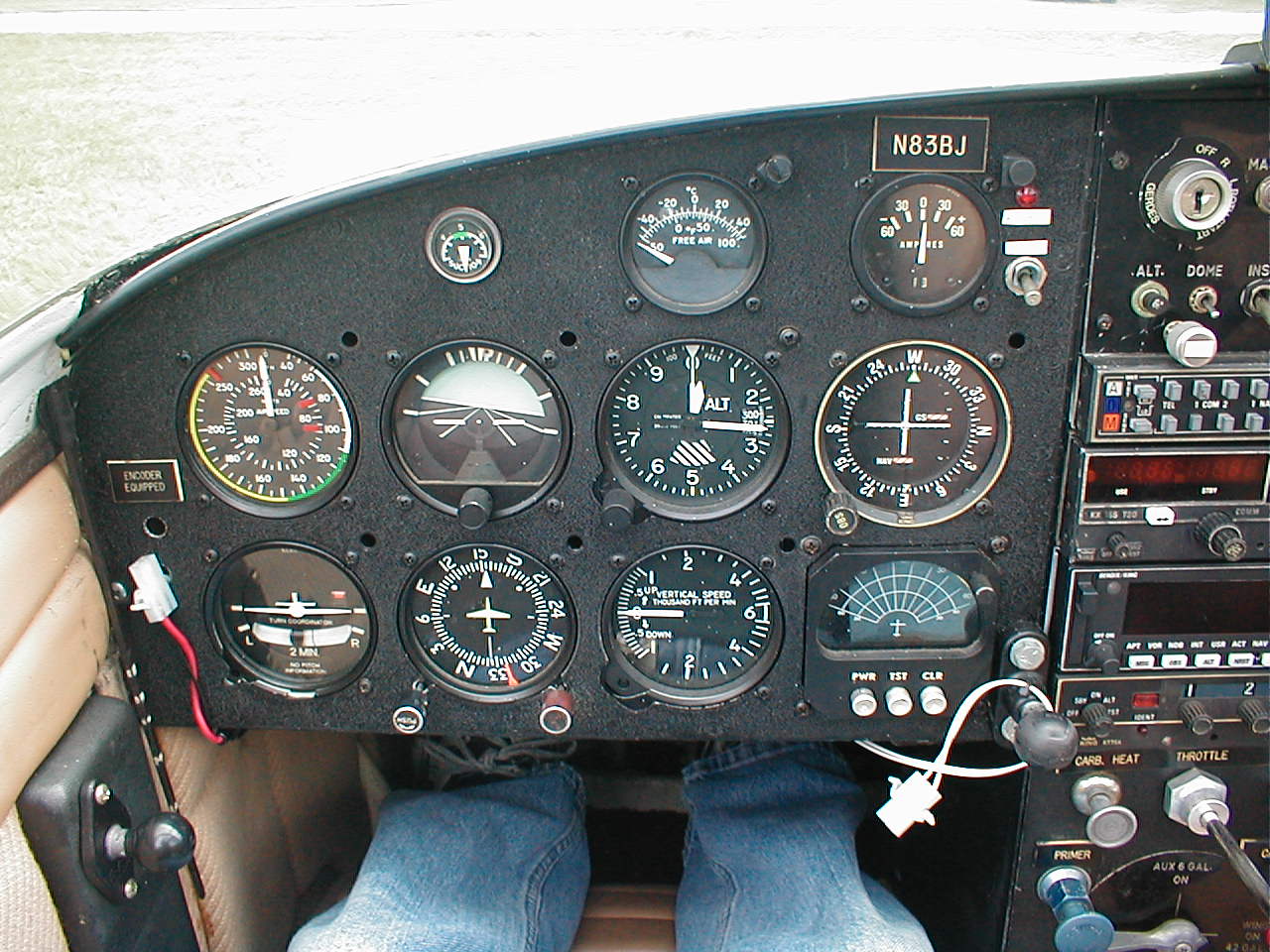

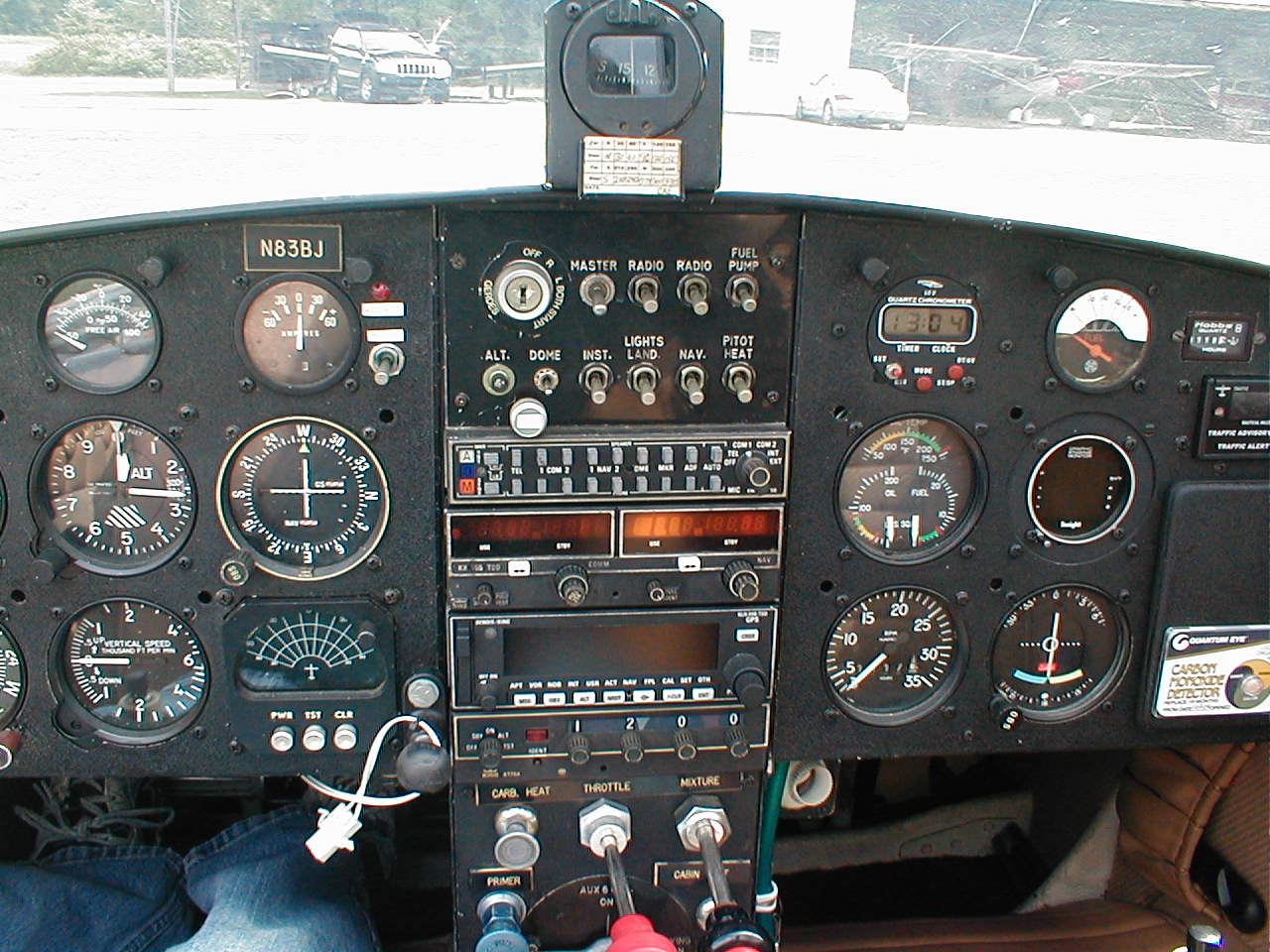

Day/Night VFR/IFR Equipped
King KMA-24 MKR and Audio Panel
King KX-155 Nav/Com w/ Glideslope
King KLN-89B IFR Panel GPS
King KT-76A Mode C Transponder w/ Altitude
WX-8 Stormscope

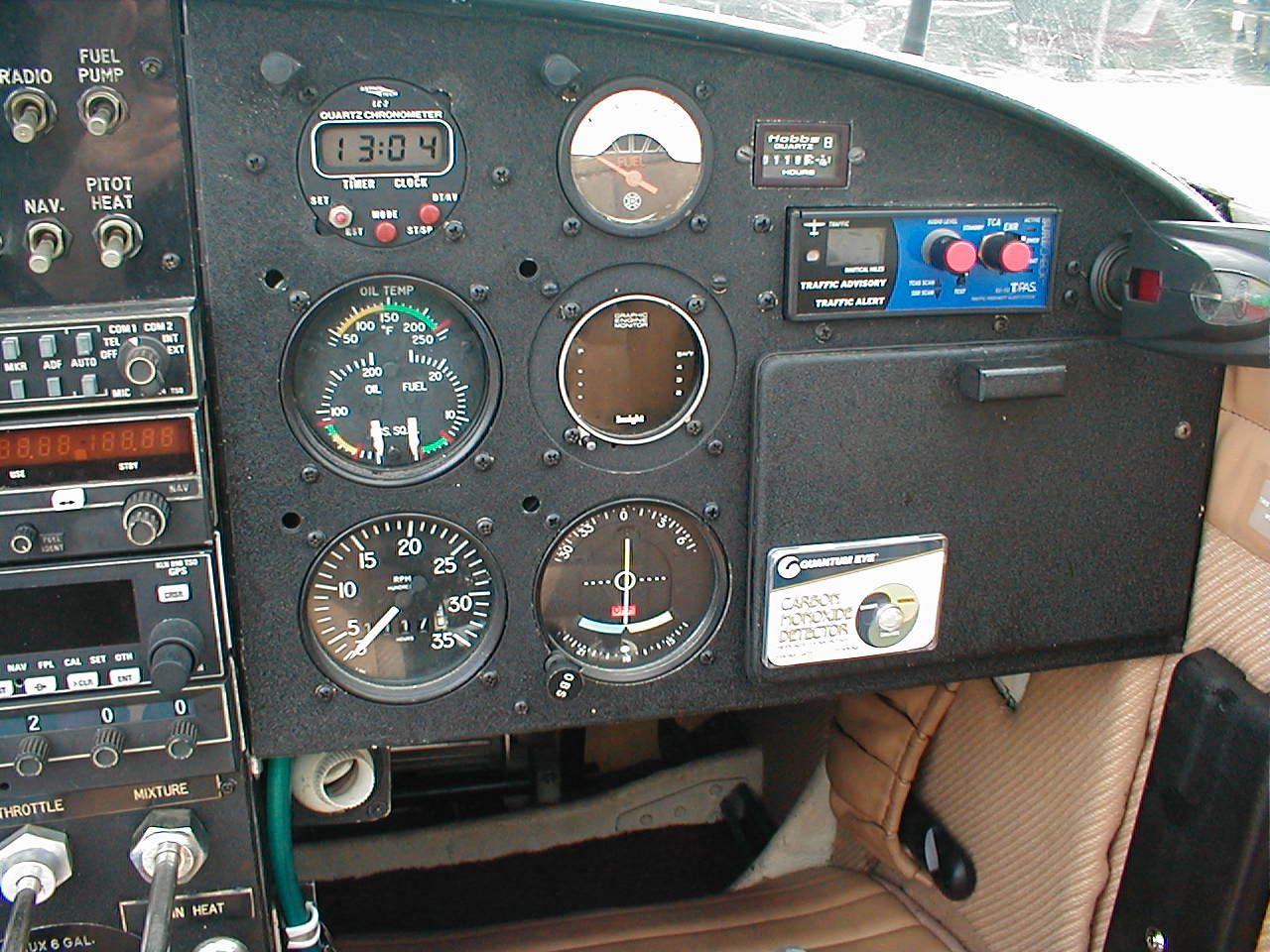

Insight GEM 602 Digital EGT/CHT - 4 cyl
Oil/Fuel Pressure, Oil Temp, Digital Clock/Timer, RPM
Vaccuum Pressure, OAT, Ammeter, Compass
Airspeed, Attitude, Altitude, Turn Coord, DG, VSI
Autopilot (Wing Leveler) Servos
Two Place Intercom
Strobe/Nav Lights
Lighted Instruments
Glasair Logo Canopy Cover
Kennon Wing, Elevator and Prop Covers
Custom Glasair Wheel Chocks
Original Builder Manuals

Annual Condition Inspection Due September 2007

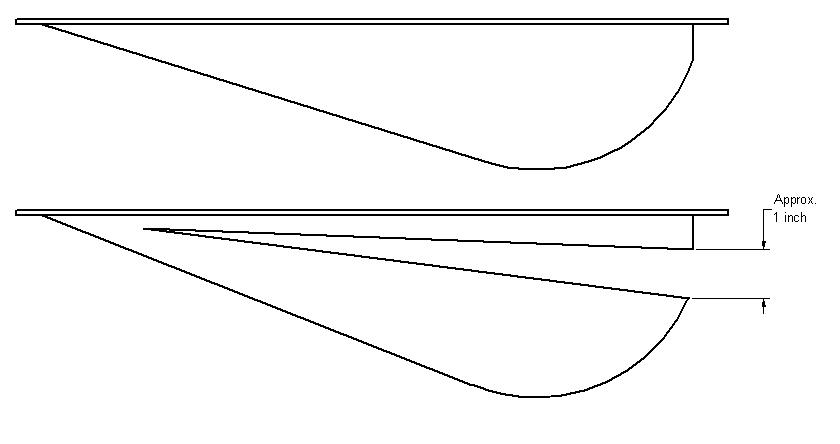

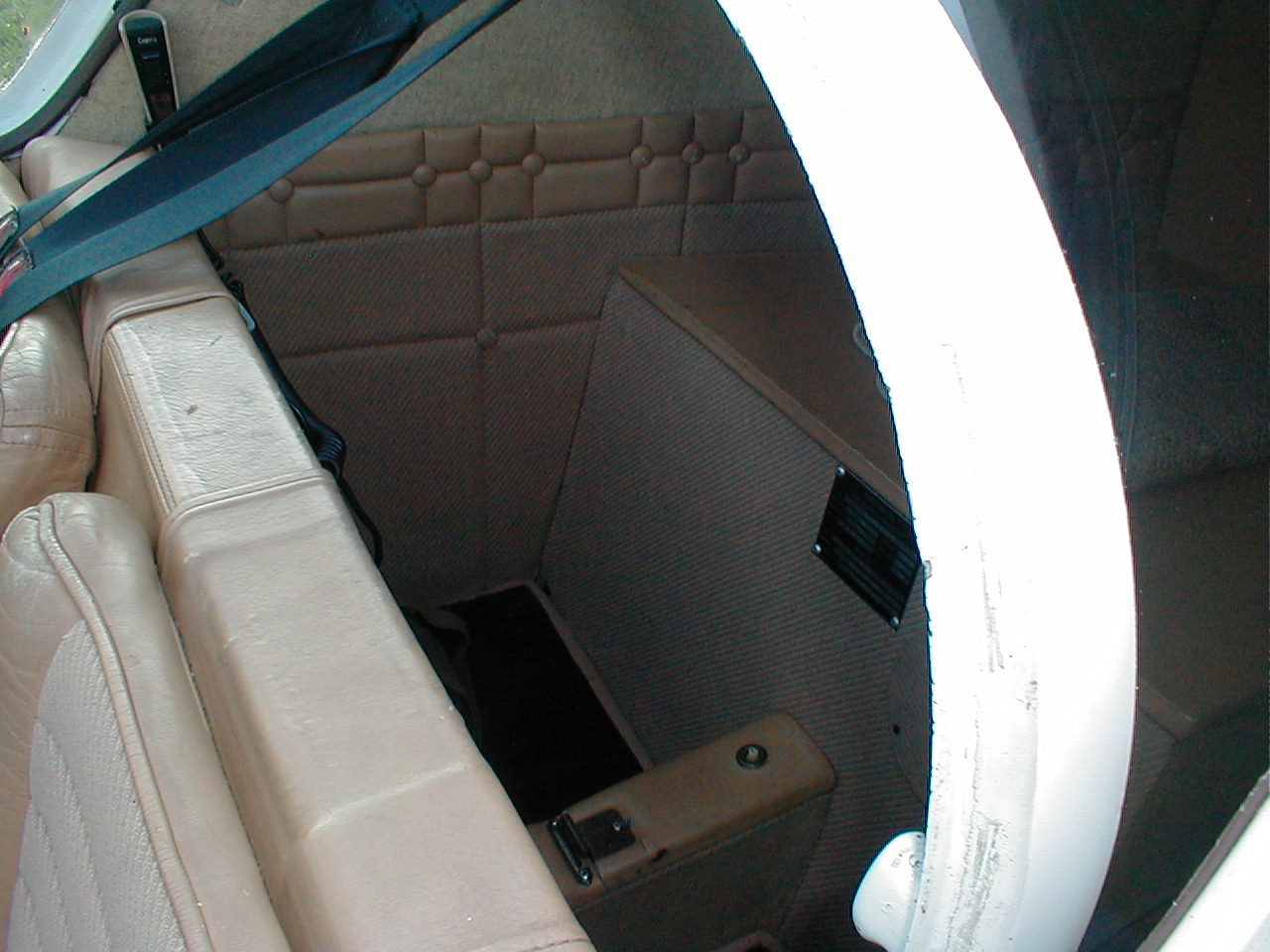

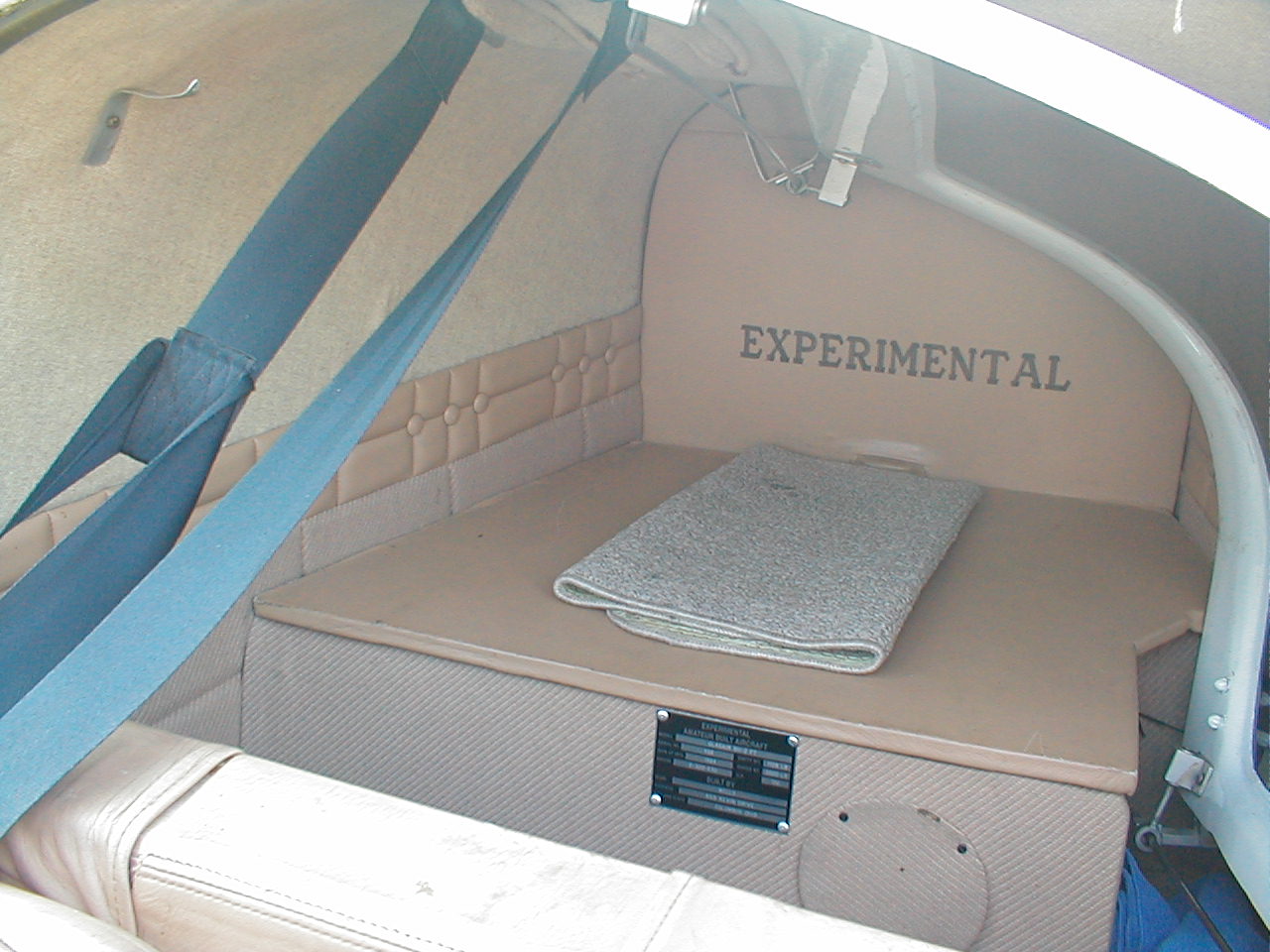

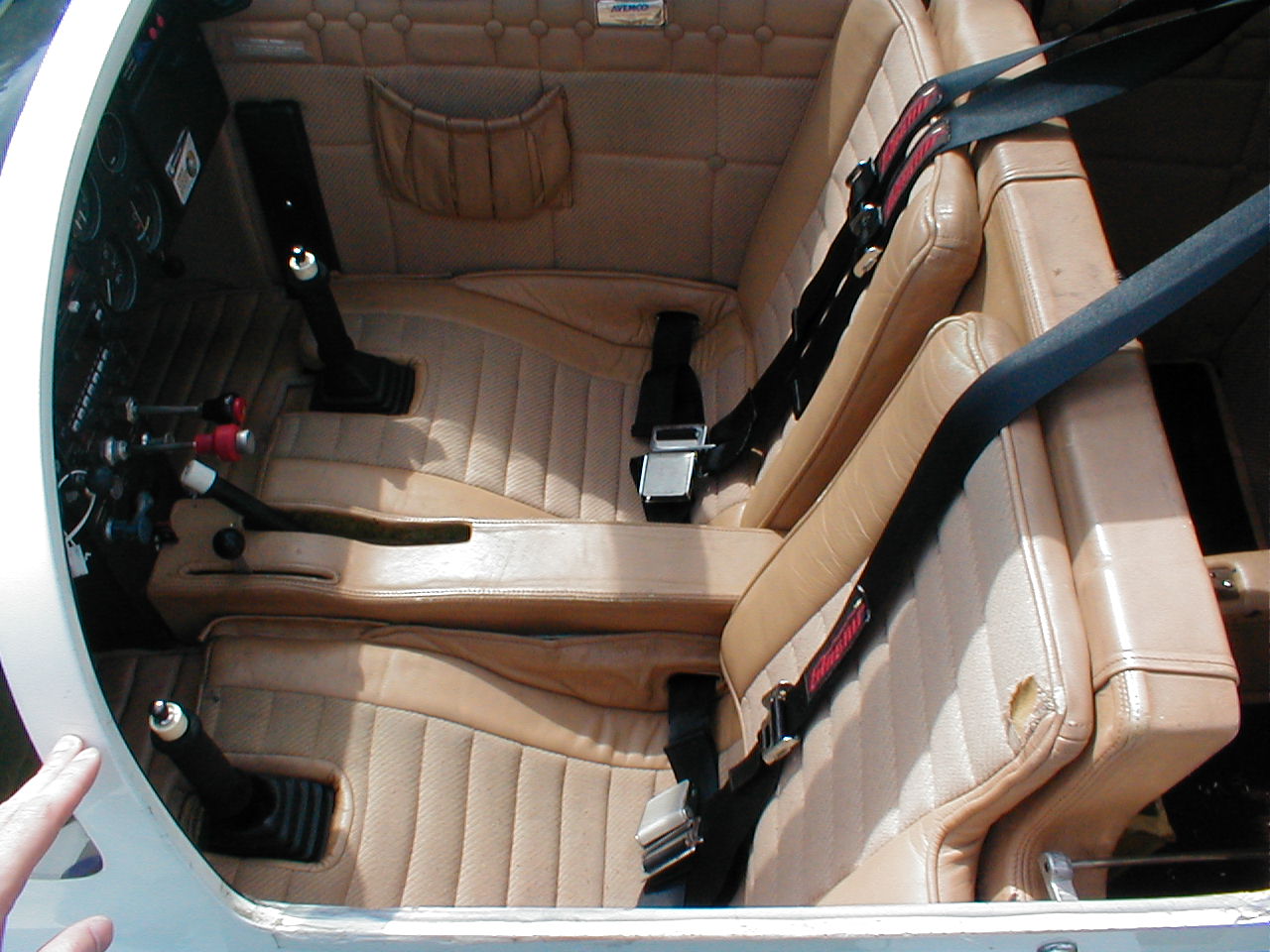

Please note that if you are over 6 feet tall, you will need to make this seat pan mod to fit in this aircraft.
If you are over 6'2", you should consider a Glasair III... :-)

New parts installed in Summer 2003:

Complete Stainless Steel Exhaust, heat shrouds, and vent hoses
Prop reconditioned and static balanced by Sensenich
Prop dynamically balanced on running engine
Rebuilt all Brake Pedal Actuators
Replaced Brake Lines, Brake Pads, and right Brake Cylinder
Fuel and Oil Lines
All Spark Plugs
Rubber Engine Mounts
Induction Hoses
Nose Gear Rubber Shock Absorber
New Style Locking Gas Cap from New Glasair
Most antenna cables replaced
Overhauled Carburator
Alternator inspected and bench tested
Alternator Belt
Fuel, Air, and Vacuum Filters
Hobbs Meter
Lap/Chart Positionable Spot Lights
Adjustable Lumbar Support in Seat Backs
Many smaller items (Valve Cover Gaskets, etc)

Dec 2003

Installed New Right Magneto
Installed New Alternator Filter/Capacitor

Jan 2004

Installed Surecheck TPAS Traffic Alert System
Installed Instrument Lighting and Dimmer System (Replaced post lights)
Installed Low Voltage Warning System
Installed 12v Accessory Power Plug

Feb 2004

Replaced Both Fuel Drains
Recalibrated Fuel Gauge

Mar 2004

Installed New Alternator
Installed New Style Aluminum Flush Locking Fuel Caps on all tanks
Installed Alternator Overvoltage Protection Circuit

Jun 2004

Annual Condition Inspection
New Vacuum Pump
New Right Main Tire and Tube
New Brake Pads on both Main Wheels

Oct 2004

New Electric Turn Coordinator

Jan 2005

New Strobe Power Supply in Right Wing
New Strobe Flash Tube in Right Wing
Added electrical noise filter to both strobe systems
Replaced faulty EGT probe in #3 cyl

Aug 2005

Annual Condition Inspection
New Left Main Tire and Tube
New Brake Pads on both Main Wheels
New Gascolator Gasket and Fuel Drain

Apr 2006

New Strobe Power Supply in Left Wing
New Strobe Flash Tube in Left Wing
Dynamic Prop Balance

Sep 2006

Annual Condition Inspection (Compressions 74, 74, 76 and 78/80)
New Battery


Current known issues:
TPAS needs electrical noise filter added to power feed (interferes with Stormscope)
CHT probe on cyl #2 should be replaced (occasional flaky readings)
